Diagnosing an overnight battery drain, often called a parasitic draw, requires a methodical approach, as the culprit can be hidden. The primary tool you’ll need is a multimeter capable of measuring amperage (current). Before you begin, ensure the battery is fully charged.
How Can I Diagnose Overnight Battery Drain?
First, prepare the vehicle: Turn off all accessories, close all doors, the hood, and the trunk (you might need to manually latch them or use a screwdriver to fool the latch sensors to simulate closure, especially for the trunk light). Remove the key from the ignition.
Also read: Car Battery Dying Overnight: 7 Shocking Reasons
Wait at least 15-30 minutes for the car’s computer systems to “go to sleep,” as many modern vehicles draw significant current immediately after being shut down before entering a low-power mode.

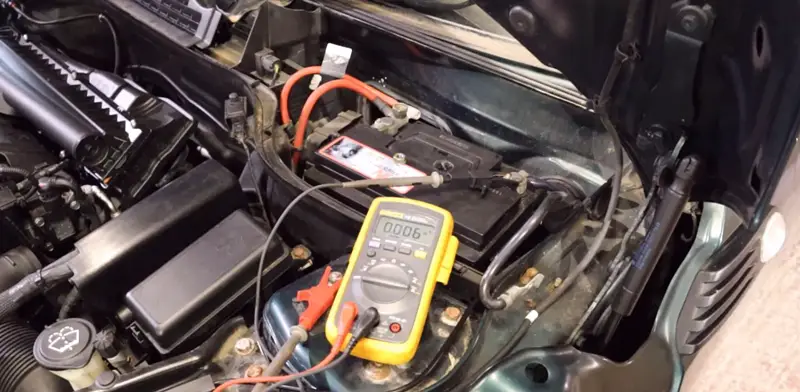

Next, disconnect the negative battery terminal. Connect your multimeter in series between the negative battery post and the disconnected negative battery cable. Set the multimeter to measure amperes (usually a 10A or 20A setting for initial testing). Note the current draw.
A normal parasitic draw for most modern vehicles is typically between 20 to 50 milliamperes (0.02 to 0.05 amps). If your reading is significantly higher (e.g., 0.1 amps or more), you have an excessive draw.
To pinpoint the source, begin pulling fuses one by one from the fuse box (check both under-hood and cabin fuse boxes). As you remove each fuse, observe the multimeter reading. When the amperage drops significantly after pulling a specific fuse, you’ve identified the circuit containing the parasitic drain.
Once the problematic circuit is found, you can then investigate the components on that circuit (e.g., a radio, interior lights, power seats, alarm system) to find the exact faulty part.
If pulling all fuses doesn’t reveal the draw, the issue might be with the alternator or starter, which would need separate testing. This systematic approach allows you to narrow down the problem effectively.
